CENTRAL-24-HP-C-230B00-O 24K MRCOOL® Hyper Heat Central Ducted Condenser

$2,040.00

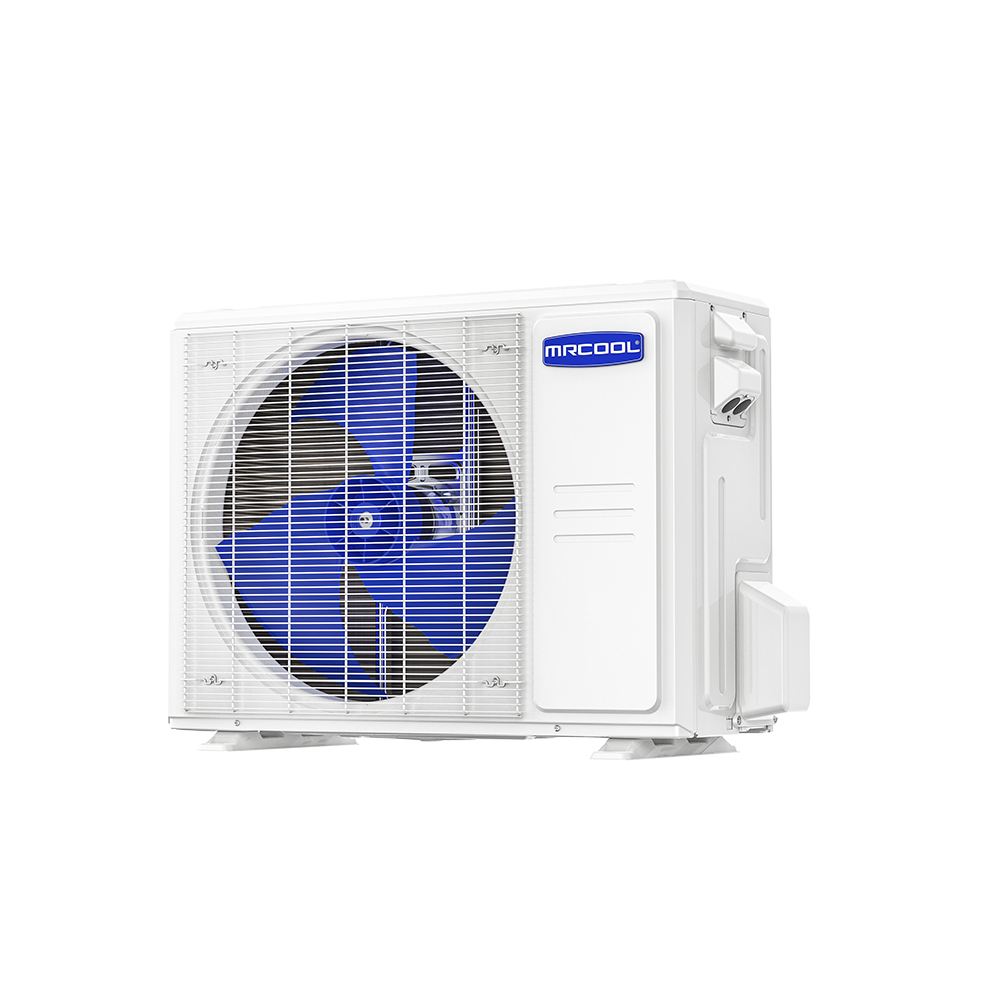

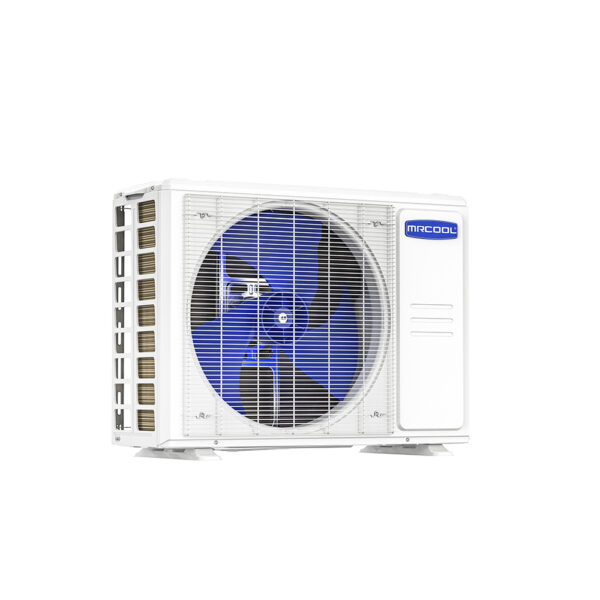

24K MRCOOL® Hyper Heat Central Ducted Condenser

SKU: CENTRAL-24-HP-C-230B00-O Category: Tag: Brand:

Description

Maintain year-round comfort in your home with the 24K MRCOOL® Hyper Heat Central Ducted Condenser, a reliable system designed to perform in both freezing temperatures and scorching heat. This cutting-edge unit combines powerful performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 18.3 and an HSPF2-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. You can also enjoy effortless control with the included MRCOOL® Smart thermostat making temperature adjustments simple and efficient. The 24K MRCOOL® Hyper Heat Central Ducted Condenser is also designed to work with the 24K MRCOOL® VersaPro® Central Ducted Air Handler. Installation is straightforward with an adaptable air handler that supports multiple configurations, and a heat kit can be added for additional functionality. This central ducted unit uses R-454B refrigerant, a modern choice designed to reduce environmental impact. Additionally, the Hyper Heat Condenser is fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler. The outdoor heat pump boasts a durable painted galvanized steel exterior for long-lasting performance. The air handler complements this with a compact design, slide-out blower, and a self-diagnostics panel, allowing straightforward maintenance and troubleshooting. To ensure peace of mind, the 24K MRCOOL® Hyper Heat Central Ducted Condenser comes with a 10-year warranty that covers the compressor, parts, and labor. The labor warranty is activated automatically at installation, providing seamless and worry-free protection.

Additional information

Unit Type

Split System Heat Pump

Equipment Type

Condenser

Seer2

18.3

Eer2

11.7

Cfm

1765.7

Tonnage

2

Cooling capacity BTU

23000

Heating Capacity Btu

24000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

20

Min Circuit Ampacity A

19

Color

gray

Refrigerant Type

R454B

Refrigerant Volume Oz

74.08

Decibel Rating Dba

60

Liquid Line Size

3/8

Suction Line Size

3/4

Wifi Compatibility

Yes

Energy Star Certified

Yes

Ahri Certified

Yes

Brochure

https://www.mrcool.com/wp-content/dox_repo/mc-cd-hh-gen-2-br-en-01.pdf

Install Manual

https://www.mrcool.com/wp-content/dox_repo/mc-vp-HH-CDU-im-um-en-01.pdf

Specs

https://doxrepo.mrcool.com/mc-cd-hh-gen-2-perf-specs-en-01.pdf

Ahri Certs

https://www.mrcool.com/wp-content/dox_repo/AHRI/mc-CENTRAL-24-HP-C-230B00-O-certs.pdf

Energy Guide Certs

https://www.mrcool.com/wp-content/dox_repo/EnergyGuide/mc-eg-CENTRAL-24-HP-C-230B00-O-certs.pdf
