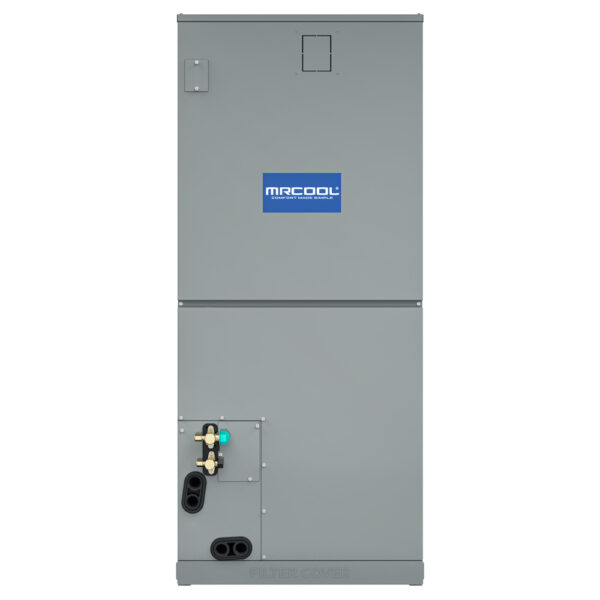

CENTRAL-48-HP-MUAH230A00 48K MRCOOL® Hyper Heat Central Ducted Air Handler

$1,223.00

48K MRCOOL® Hyper Heat Central Ducted Air Handler

SKU: CENTRAL-48-HP-MUAH230A00 Category:

Description

Regardless of external weather conditions, the 48K MRCOOL® Hyper Heat Central Ducted Air Handler is an exceptional choice for your home’s heating and cooling needs. Its efficiency results in utility expense savings, and it boasts an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4 due to its superior heating capacity. Constructed with painted galvanized steel, the high quality unit features a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters for easy maintenance. An HVAC technician can effortlessly install the unit, which is designed to work with the optional MRCOOL® No-Vac® Quick Connect® Line Set. This line set comes pre-charged with eco-friendly R410-A refrigerant, eliminating the need for vacuuming or flare welding and providing kink resistance. It allows for flexible installation options as it can be configured in various ways. Additionally, a wired thermostat, wireless remote, and an optional heat kit are available if needed. Should any operational concerns arise, the air handler is backed by a reassuring 10-year warranty for parts and labor, giving you peace of mind. Moreover, there’s no need to register for the included labor warranty.

Additional information

Cfm

1470.59/1282.35/1094.12/905.88

Cooling capacity BTU

47000

Heating Capacity Btu

50000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

15

Min Circuit Ampacity A

7.5

Refrigerant Type

R-410A

Decibel Rating Dba

47

Decibel Rating Low Dba

43.5

Decibel Rating High Dba

50

Number Of Speeds

4

Inverter

DC

Max Lineset Length Ft

213.25

Liquid Line Size

3/8

Suction Line Size

3/4

Ul Listed

Yes

Ahri Certified

Yes

Base Warranty

10yrs Parts and Labor

Brochure

https://mrcool.com/wp-content/dox_repo/mc-cdu-hh-br-en-01.pdf

Install Manual

https://mrcool.com/wp-content/dox_repo/mc-HH-CDU-sz-im-um-en-01.pdf

Specs

https://mrcool.com/wp-content/dox_repo/mc-HH-CDU-perf-ss-en-01.pdf

Remote Manual

https://mrcool.com/wp-content/dox_repo/mc-AHU-rmt-um-en-01.pdf

Ahri Certs

https://mrcool.com/wp-content/dox_repo/AHRI/mc-cdu-hh-48_Certs.pdf

Energy Guide Certs

https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc-cdu-hh-48_EG.png
