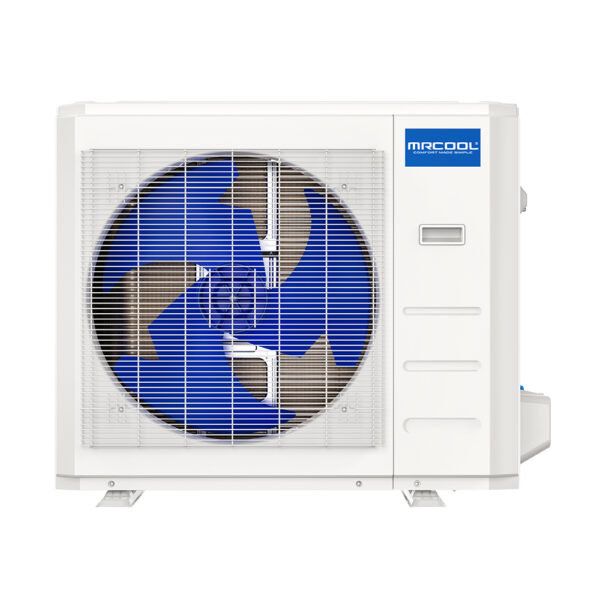

DIY-36-HP-C-230C25 MrCool DIY 4th Gen Single-Zone 36k Condenser 230V

$1,700.00

MrCool DIY 4th Gen Single-Zone 36k Condenser 230V

SKU: DIY-36-HP-C-230C25 Category: Brand:

Description

The MRCOOL® 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MrCool Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MrCool offers a limited lifetime compressor warranty on this system.

Additional information

Unit Type

Mini Split

Seer2

18.3

Eer

8.7

Eer2

8.7

Cfm

673.53/502.94/367.65

Tonnage

3

Cooling capacity BTU

36000

Heating Capacity Btu

36000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

35

Min Circuit Ampacity A

28

Color

White

Color Family

White

Rated Load

0.5

Max Coverage Area

Up to 1500

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume Oz

111.1

Decibel Rating Dba

52/45/34

Decibel Rating Low Dba

34

Decibel Rating High Dba

52

Air Flow Direction

4-W

Oscillation

Yes

Inverter

Yes

Max Lineset Length Ft

75

Liquid Line Size

3/8

Suction Line Size

5/8

Compressor Motor Type

ROTARY

Wifi Compatibility

Yes

Ul Listed

Yes

Energy Star Certified

No

Ahri Certified

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Brochure

https://mrcool.com/wp-content/dox_repo/mc-diy-4-br-en-01.pdf

Install Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-es-im-um-en-01.pdf

Specs

https://mrcool.com/wp-content/dox_repo/mc-diy-es-4-ss-en-01.pdf

Remote Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-ez-rmt-um-en-01.pdf

Ahri Certs

https://mrcool.com/wp-content/dox_repo/AHRI/mc_diy-mz-48-230C_Certs.pdf

Energy Guide Certs

https://doxrepo.mrcool.com/EnergyGuide/mc-DIY-36-HP-C-230C25-EG-certs.pdf
