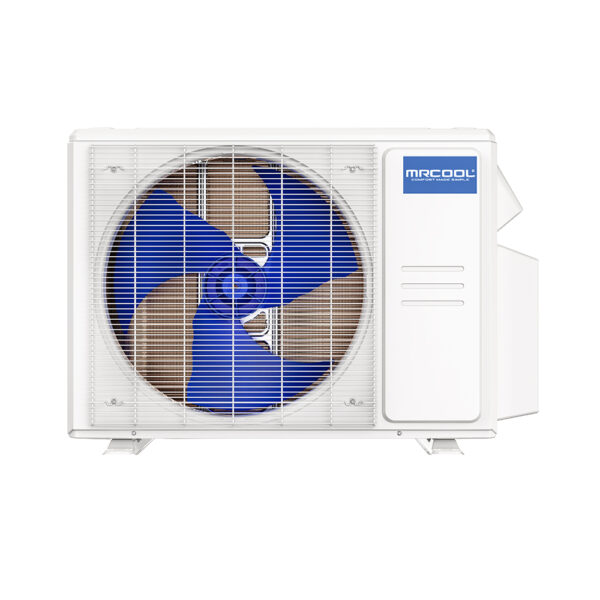

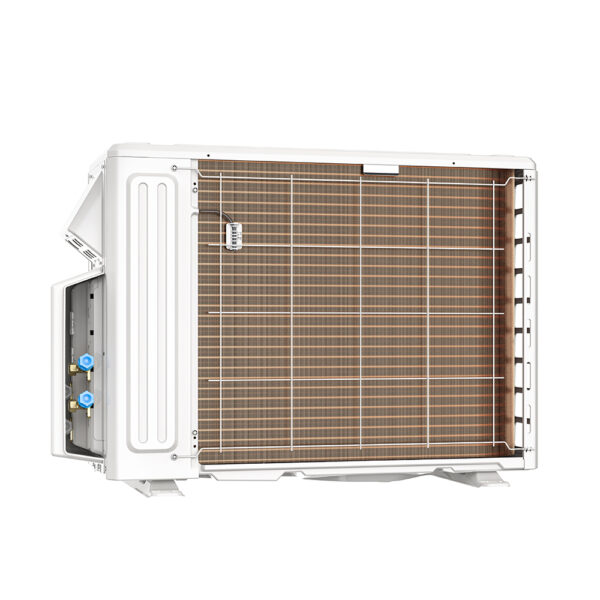

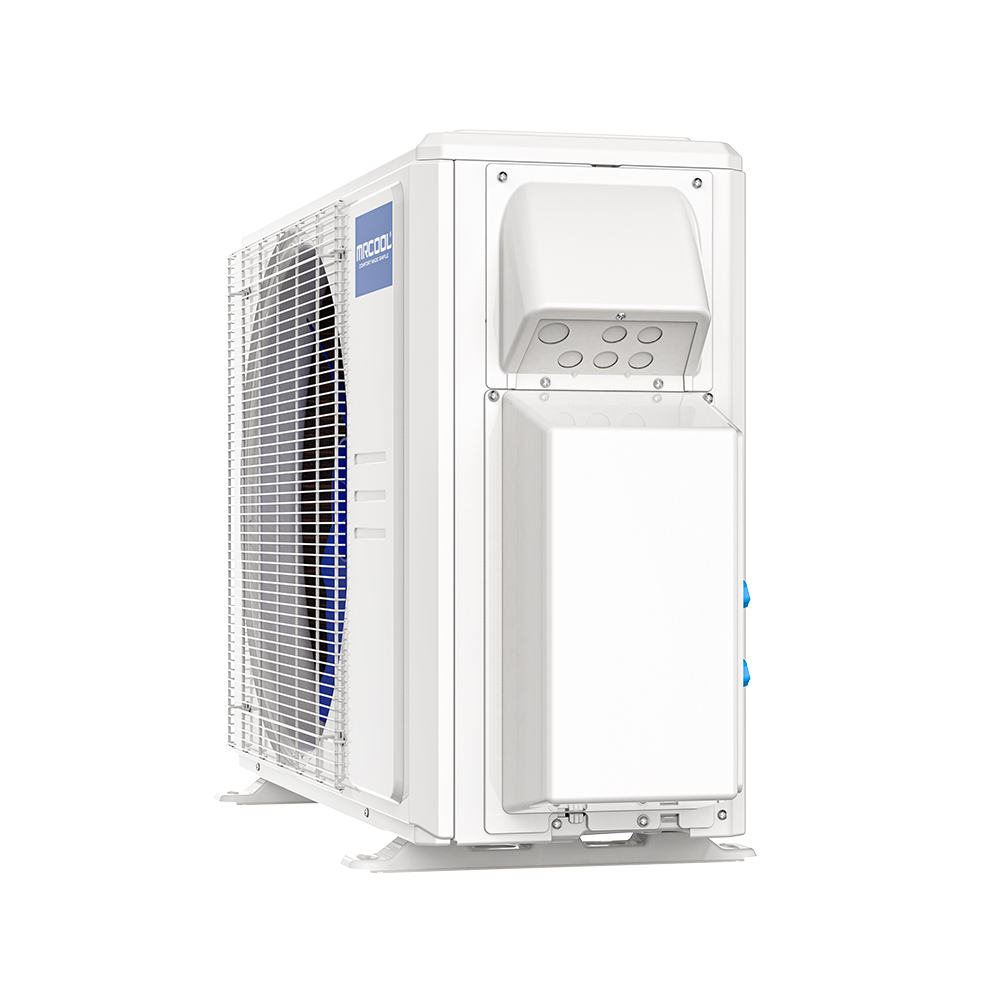

DIY-MULTI2-18HP230C MRCOOL® DIY 4th Gen Multi-Zone 2-Zone Condenser

$1,372.00

MRCOOL® DIY 4th Gen Multi-Zone 2-Zone Condenser

SKU: DIY-MULTI2-18HP230C Category: Brand:

Description

The 4th Generation MRCOOL® DIY 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 18K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.

Additional information

Unit Type

Mini-Split

Seer

21

Seer2

21.2

Eer

12.5

Eer2

12.5

Cfm

1764.71

Cooling capacity BTU

18000

Heating Capacity Btu

19000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

25

Min Circuit Ampacity A

18

Color

White

Color Family

White

Zone Capacity

2

Refrigerant Type

R-410A

Refrigerant Volume Oz

65.26

Decibel Rating Dba

59

Inverter

Yes

Max Lineset Length Ft

123 TOTAL

Liquid Line Size

1/4

Suction Line Size

1/2

Compressor Motor Type

Twin – Rotary

Wifi Compatibility

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Brochure

https://mrcool.com/wp-content/dox_repo/mc-diy-mz-4-br-en-01.pdf

Install Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-im-um-en-01.pdf

Specs

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-ss-en-01.pdf

Owner Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-tsg-en-01.pdf

Remote Manual

https://mrcool.com/wp-content/dox_repo/mc-rmt-um-en-02.pdf

Technical Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-qs-im-en-01.pdf

Ahri Certs

https://mrcool.com/wp-content/dox_repo/AHRI/mc_diy-mz-18-230C_Certs.pdf

Energy Guide Certs

https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_diy-mz-18-230C_EG_Certs.PDF
