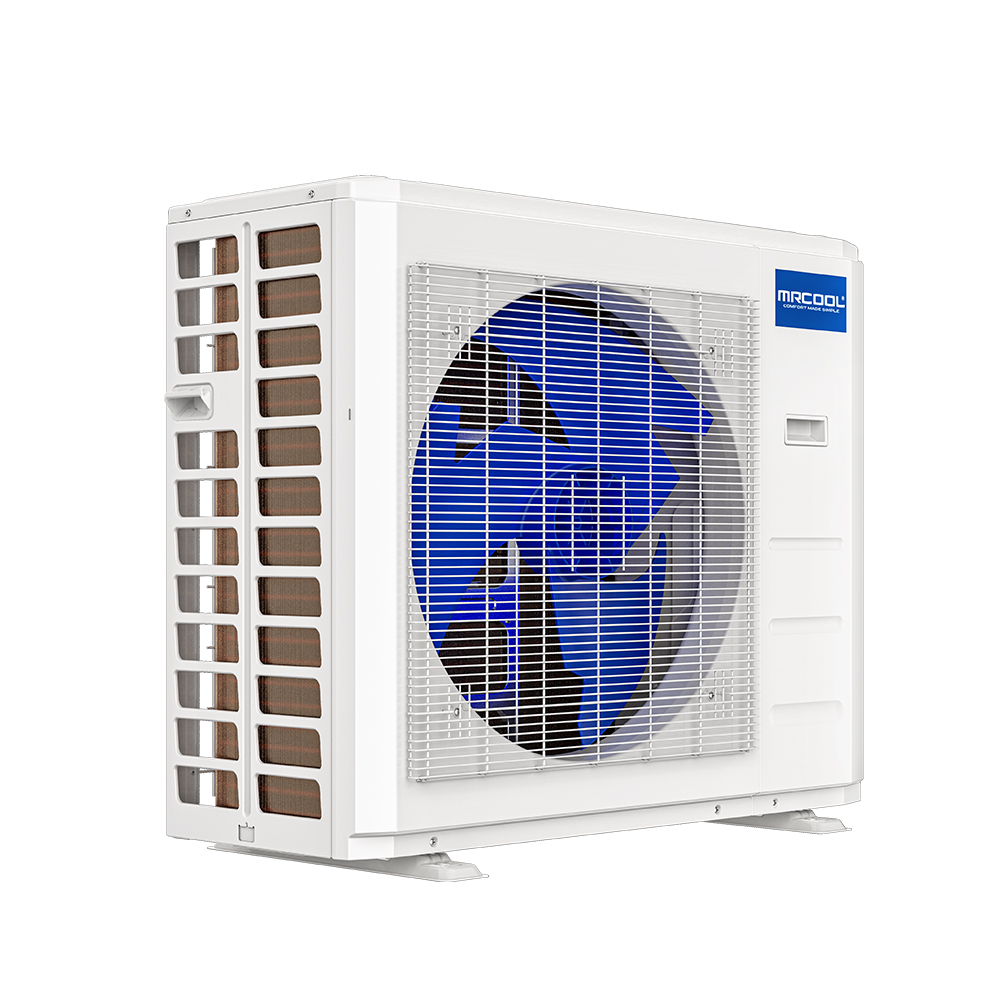

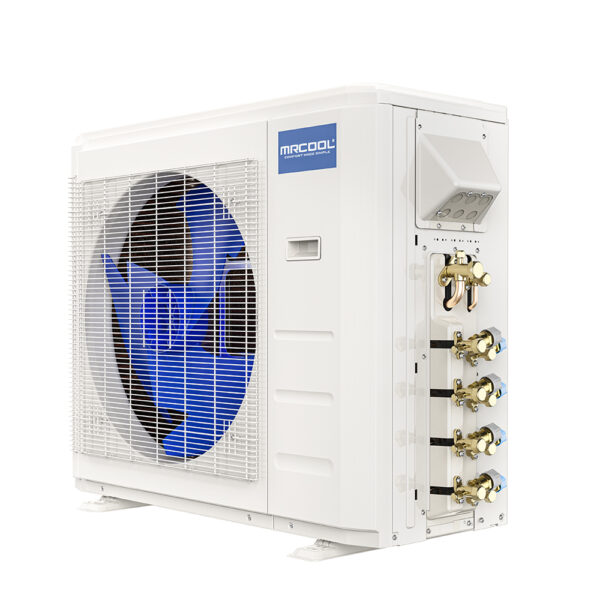

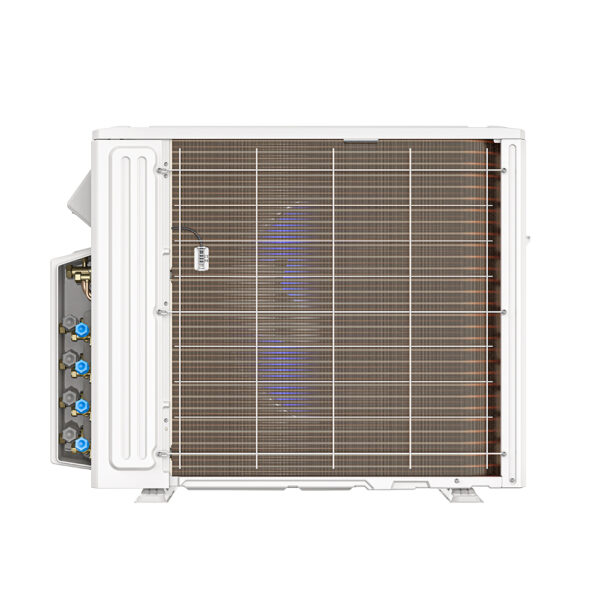

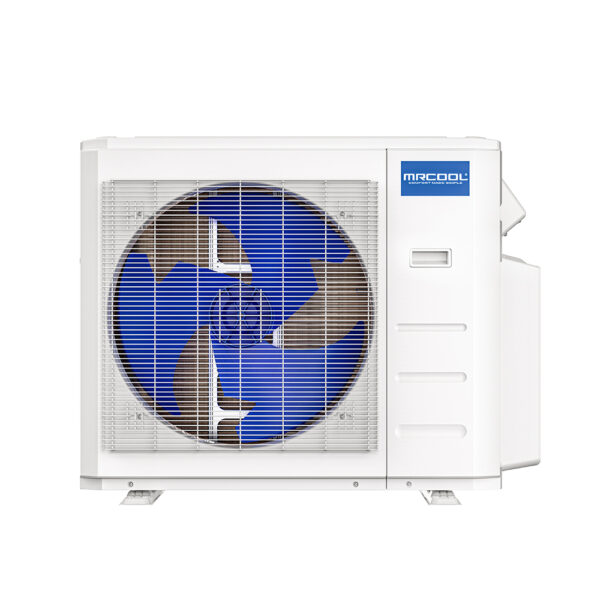

DIY-MULTI4-36HP230C MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser

$2,107.00

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser

SKU: DIY-MULTI4-36HP230C Category: Brand:

Description

The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Additional information

Unit Type

Mini-Split

Seer

21.5

Seer2

21.5

Eer

10.5

Eer2

10.5

Cfm

2147.06

Cooling capacity BTU

36000

Heating Capacity Btu

36000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

45

Min Circuit Ampacity A

27

Color

White

Color Family

White

Zone Capacity

Up to 4

Refrigerant Type

R-410A

Refrigerant Volume Oz

134.04

Decibel Rating Dba

65

Inverter

Yes

Max Lineset Length Ft

221 TOTAL

Liquid Line Size

1/4 (3/8 w/ adapter)

Suction Line Size

1/2 (5/8 w/ adapter)

Compressor Motor Type

ROTARY

Wifi Compatibility

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Brochure

https://mrcool.com/wp-content/dox_repo/mc-diy-mz-4-br-en-01.pdf

Install Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-im-um-en-01.pdf

Specs

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-ss-en-01.pdf

Owner Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-tsg-en-01.pdf

Remote Manual

https://mrcool.com/wp-content/dox_repo/mc-rmt-um-en-02.pdf

Technical Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-qs-im-en-01.pdf

Ahri Certs

https://mrcool.com/wp-content/dox_repo/AHRI/mc_diy-mz-36-230C_Certs.pdf

Energy Guide Certs

https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_diy-mz-36-230C_EG_Certs.pdf
