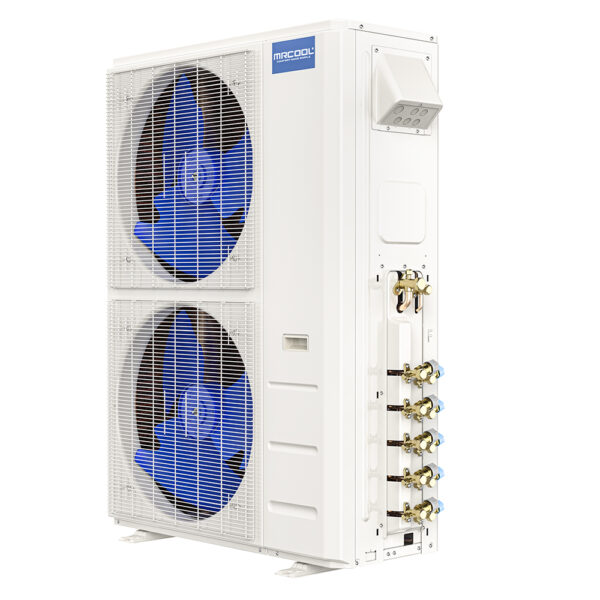

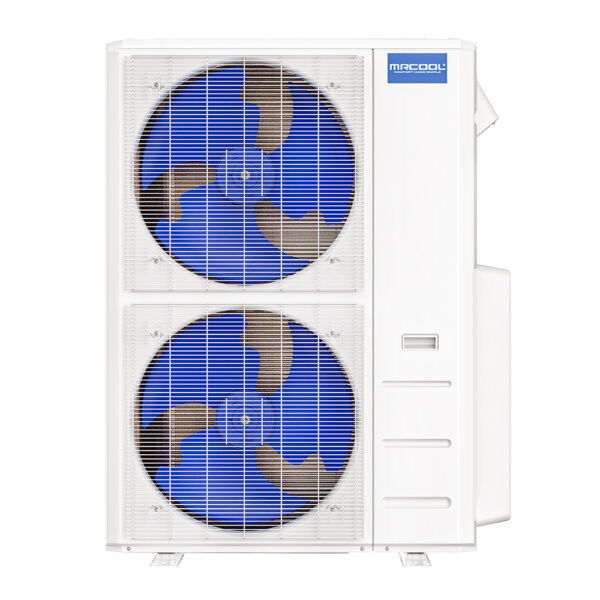

DIY-MULTI5-48HP230C MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser

$2,814.00

MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser

SKU: DIY-MULTI5-48HP230C Category: Brand:

Description

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Additional information

Unit Type

Mini-Split

Seer

20.5

Seer2

20.5

Eer

11

Eer2

11

Cfm

4500

Cooling capacity BTU

48000

Heating Capacity Btu

48000

Voltage V

208-230

Phase

1

Cycle Hz

60

Max Fuse Breaker A

60

Min Circuit Ampacity A

40

Color

White

Color Family

White

Zone Capacity

Up to 5

Refrigerant Type

R-410A

Refrigerant Volume Oz

162

Decibel Rating Dba

61.5

Inverter

Yes

Max Lineset Length Ft

221 TOTAL

Liquid Line Size

1/4 (3/8 w/ adapter)

Suction Line Size

1/2 (5/8 w/ adapter)

Compressor Motor Type

ROTARY

Wifi Compatibility

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Brochure

https://mrcool.com/wp-content/dox_repo/mc-diy-mz-4-br-en-01.pdf

Install Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-im-um-en-01.pdf

Specs

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-ss-en-01.pdf

Owner Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-tsg-en-01.pdf

Remote Manual

https://mrcool.com/wp-content/dox_repo/mc-rmt-um-en-02.pdf

Technical Manual

https://mrcool.com/wp-content/dox_repo/mc-diy-4-mz-qs-im-en-01.pdf

Ahri Certs

https://mrcool.com/wp-content/dox_repo/AHRI/mc_diy-mz-48-230C_Certs.pdf

Energy Guide Certs

https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_diy-mz-48-230C_EG_Certs.PDF
